EN10305-1 Hydraulic Cylinder Tubing

Instruction

Torich produces Hydraulic Cylinder Tubing according to technical Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes

For Hydraulic Cylinder/Oil Cylinder Tube/Excavator Chains and Parts

Hydraulic Cylinder Tubing Size range:

O.D.:6-380mm     W.T.:1-35mm      L:max12000mm

Hydraulic Cylinder Tubing Steel Grade and Chemical Compositions:

Steel Grade		C	Si	Mn	P	S	Al
Steel Name	Steel    Number	max	max	max	max	max	min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-





aRm: tensile strength;  ReH: upper yield strength; A: elongation after fracture
b 1Mpa=1N/mm2
c Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strength.
For calculation purposes the following relations are recommended:
for delivery condition +C: ReH ≥0.8 Rm
for delivery condition +LC: ReH ≥0.7 Rm
d For calclulation purposes the following relation is recommended:ReH≥0.5Rm
e For tubes with outside diameter ≤30mm and wall thickness ≤3mm the ReH minimim values are 10Mpa lower than the values given in this Table
f For tubes with outside diameter＞160mm: ReH≥420Mpa

Note: Special steel grade is also available, according to customer request.

Hydraulic Cylinder Tubing in production site:

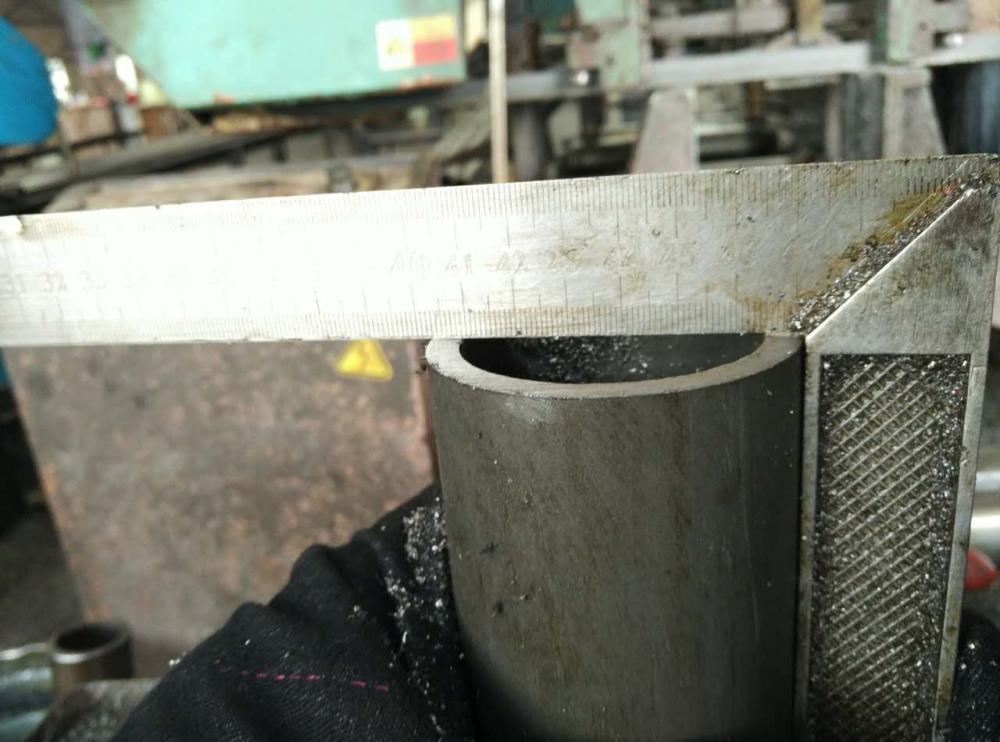

Cutting Machine and Ends Inspection by L Gauge:




Dimensional Inspection tool by Go and No Go Gauge:

Packing:
